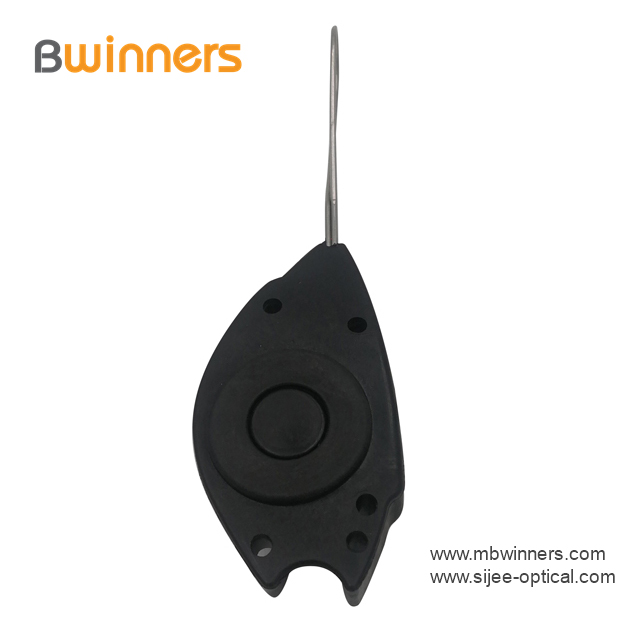

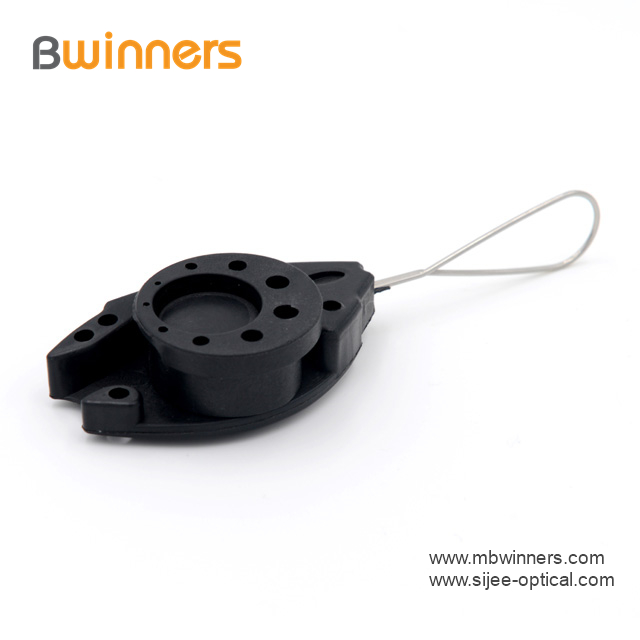

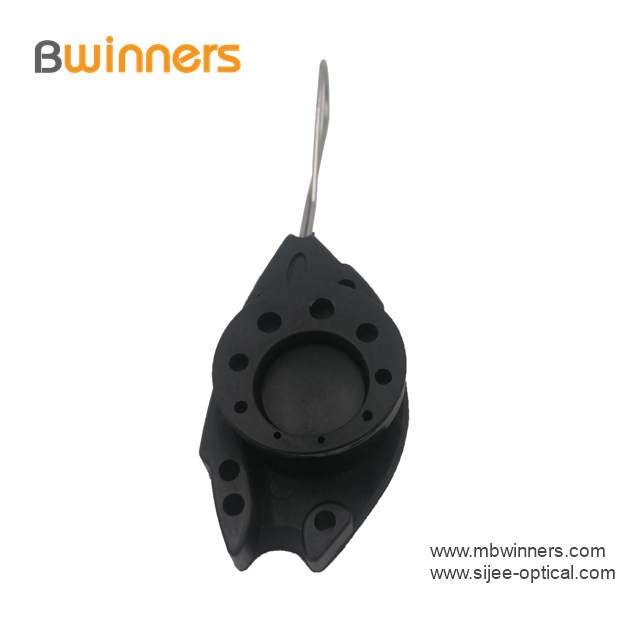

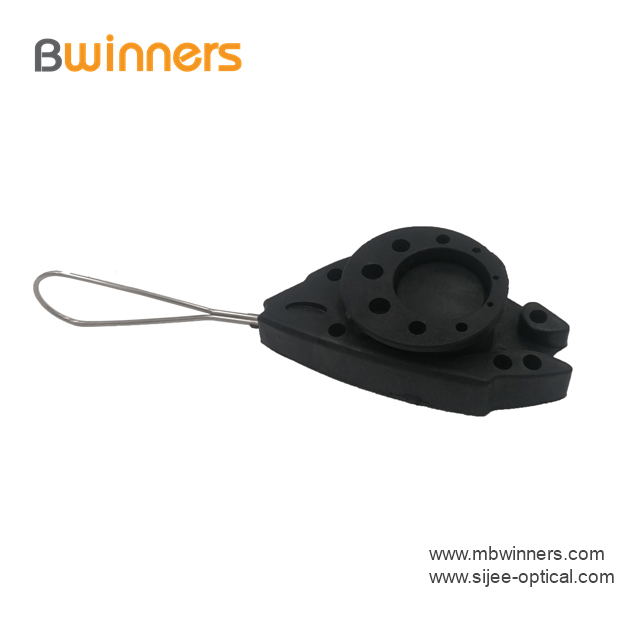

Fish Type FTTH Fiber Drop Cable Tension Clamp

  • Fish Type FTTH Fiber Drop Cable Tension Clamp
  • Fish Type FTTH Fiber Drop Cable Tension Clamp
  • Fish Type FTTH Fiber Drop Cable Tension Clamp
  • Fish Type FTTH Fiber Drop Cable Tension Clamp

Fish Type FTTH Fiber Drop Cable Tension Clamp

    Payment Type: L/C,T/T,Paypal,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 10 Set/Sets
    Delivery Time: 5 Days
    Packaging: Carton
    Brand: Sijee or OEM
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 20000 pieces per week
    Certificate: ISO9001
    Port: Ningbo,Shanghai

Basic Info

Model No.: FACH-BW-01

Product Description

Fish Type FTTH Fiber Drop Cable Tension/ Suspension Clamp Self-Adjustable
FACH-BW-01 Anchor Clamp, Fish Type FTTH Fiber Drop Cable Tension/ Suspension Clamp Self-Adjustable for fig-8 cable with stainless steel or aluminum alloy messenger are developed to anchor optical fiber cable with steel messenger during the construction of transmission fiber optic lines. FACH-BW-01 anchoring clamps are self-adjusted and appropriate for usage with steel messenger. During anchoring of fiber optical cable, FACH-BW-01 guarantee no cable insulation damages or slipping, if indicated load achieved. Self-adjustable optical fiber drop wire clamp is designed to anchor or support flat and round drop wires are the aerial outdoor solution. Also called FTTH-CLAMP, the fish clamp is hand self-adjusted and very easy in installation.

This FACH-BW-01 wheel type drop wire clamp mostly used with optical fiber drop cable. This drop-clamping device is necessary for FTTx solutions. Fish clamp FTTH can be used in anchoring, turning, suspension optical fiber cable routes. This type of FTTH drop cable clamp allows easy, installation without additional tools. Application is similar to all wedge type self-adjusting tension clamps but should be done according to specification. All the assemblies passed the tensile tests, operation experience with temperatures ranging from –60 °C up to +60 °C test, temperature cycling test, aging test, corrosion resistance test, etc.


Features:

1. Material: ABS for anchor body; stainless steel for wire

2. Dimension: 130mm*40mm*20mm(L*W*D)

3. Tool-free, compact and easy installation

4. Application: Used for binding the hanged wire of the self-supporting drop cable, and hanging the cable on the supporting device, 2 core drop cable 4mm.

Advantages:

1.Good anti-corrosion performance.

2.High strength and Wear Resistant

3.Easy installation

4.Durable

Anchor ClampFtth Drop Wire Cable Fish Anchor ClampFtth Hook StypeFtth Fiber Drop Cable Tension Clamp
